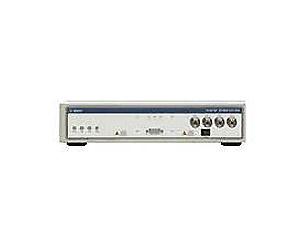

Keysight Technologies (Agilent HP) N4413A (ATN-4111A) (Balanced Measurement S-Parameter Test Set) Main Features and Specifications

Product Specs

  • Status Discontinued

The Agilent N4413A S-parameter test set is a key component of an Agilent balanced-measurement system. When combined with an Agilent 8753ES Options 006 and 011 vector network analyzer and an external PC equipped with an IEEE-488 GPIB card, this test set makes characterizing fully balanced or balanced-to-single-ended RF components a lot easier. Devices such as differential filters or amplifiers, baluns, and balanced transmission lines that were once difficult to measure using conventional two-port measuring systems, can now be completely and accurately tested.

The N4413A S-parameter test set requires the N4425A Balanced Measurement System software or the N1930A Physical Layer Test System software for control of the 4-port VNA system, calibration, and data display and analysis.

  • Display conventional (single-ended) and mixed mode S-parameters
  • Re-normalize test data for non-50-ohm devices
  • Achieve high measurement accuracy with full four-port vector error correction
  • Perform fast, accurate, automatic calibrations with easy to use N4430A four-port electronic calibration (ECal) module
  • Calculate important parameters with powerful user-defined displays
  • Gain additional insight with time domain analysis option

N4413A (ATN-4111A) specifications with the following configuration: Network analyzer (8753ES, Options 006 and 011), calibration kit (85052C, precision 3.5 mm), test port cables (N4413A, Option B20):

  • Dynamic range: Transmission measurements at 10 Hz IF bandwidth with full error correction and +15 dBm maximum output power
    • 0.050 to 0.3 GHz: 85 dB
    • 0.3 to 4 GHz: 90 dB
    • 4 to 5 GHz: 85 dB
    • 5 to 6 GHz: 75 dB
  • Frequency range: 50 MHz - 6 GHz
  • Impedance: 50 Ω
  • Insertion loss
    • Any test port to A/B: 24 dB maximum
    • RF to any test port: 10 dB maximum
    • RF to R: 20 dB maximum
  • Isolation, port to port: ≥85 dB
  • Maximum operating level; +20 dBm
  • Damage level: +30 dBm
  • Connectors
    • Test port: 3.5 mm (m)
    • VNA: 50 ohm Type N (f)
    • Weight: 9 kg
