Keysight Technologies (Agilent HP) 8922S () Main Features and Specifications

Product Specs

  • Status Discontinued

See also

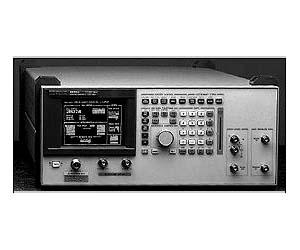

  The Agilent 8922S is a stand-alone GSM mobile station test set tailored to the demanding needs of incoming inspection and mobile repair. It includes a GSM base station emulator and all the signalling capability to fully test a mobile without additional equipment. When used in conjunction with an Agilent 83220A/E, the frequency range of the Agilent 8922S is extended to cover the DCS1800 and PCS1900 bands. The Agilent 8922R, based on the Agilent 8922S and Agilent 83220E, enhances the Agilent 8922S by adding Dual-band assignment capability.

  • Emulates GSM Base Station. GSM functionality specs:
    • Bit/frame error rate measurements: Class Ia, Ib, and Class II bits in both raw and residual form
    • MS power output level control: 0 to 15 with RF analyzer auto adjust
    • Broadcast channel capability: BCCH + CCCH or BCCH + CCCH + SDCCH/4
    • Control channels (SDCCH, FACCH, SACCH): BCCH + CCCH, BCCH + CCCH + SDCCH/4, SDCCH/8 (nonhopped), SACCH/FACCH
    • Call control capabilities: BS originated cell (FS/EFS), MS originated call (FS/EFS), MS camp-on, BS call disconnect, MS call disconnect
    • Traffic channels: TCH (FS/EFS)–HSCSD
    • Timing: Auto, manual, uplink-downlink and offset measurement
    • Hopping: Two independent, user definable MA tables with offsets
    • Speech encoding/decoding: Full rate speech
    • Speech echo mode: User selectable delay 0 to 5 seconds
    • Measurement coordination: Flexible control of burst type, ARFCN and timeslot
    • SACCH MEAS result: RXLEV, RXQUAL and timing advance
  • Rf generator specifications:
    • Frequency range: 10 MHz to 1 GHz
    • Frequency resolution: 1 Hz
    • Output level range: -14 to -127 dBm
    • Output level resolution: 0.1 dB
  • Rf analyzer specifications:
    • Frequency range: 10 MHz to 1 GHz
    • Frequency resolution: 1 Hz
    • Hop mode resolution: 100 kHz
    • CW RF frequency measurements range: 10 MHz to 1 GHz
    • CW RF frequency measurements level range: -6 to +41 dB
    • CW RF power measurements range: 90 MHz to 1 GHz
    • CW RF power measurements level range: -5 to +41 dB
  • Audio source frequency range: DC to 25 kHz
  • Audio analyzer frequency measurement range: 20 Hz to 400 kHz
  • Oscilloscope frequency range (3 dB): 2 Hz to 50 kHz
  • Easy to use; one button call set-up from power on
  • Fast, accurate and repeatable measurements
  • GSM Phase II compatible (including fast burst BER measurements and Enhanced Full-rate Speech)
  • High Speed Circuit Switched Data (HSCSD)
  • E-GSM and Dual-band assignment capability
  • Electronic attenuators for increased reliability
  • Tool kit of instruments including spectrum and audio analyzers
  • Full control over GPIB
  • Agilent 83212D software provides full automatic testing of a GSM mobile phone
  • Options:
    • High stability timebase
    • Transit protection (provides front panel cover, and extended rear feet)
    • Spectrum analyzer
    • Test SIM card
    • Micro test SIM card
    • Mobile station test software
    • Rack mount flange kit
