Showing Results for Keysight Technologies (Agilent HP) 83752A

20 results found for Agilent hp 83752a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 83752A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $7298 to $2995 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

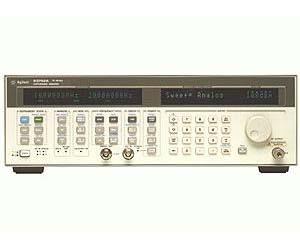

Keysight Technologies (Agilent HP) 83752A (Synthesized Sweeper) Main Features and Specifications

Product Specs

  • Frequency Range Min. 10 MHz
  • Frequency Range Max. 20 GHz
  • Freq. Resolution 1Hz
  • Output Power Minimum settable power: - 15 dBm; Wit h option: - 85 dBm
  • Modulation AM,FM,Pulse
  • Status Discontinued
  • Supported until Mar-2008
  • Alternative E8257D-520 Frequency Range from 250 kHz to 20 GHz

The Agilent 83752A sweeper brings outstanding synthesized performance to the component-test marketplace. It delivers the best performance for the price in general purpose benchtop, swept test or scalar applications. This sweeper provides superior accuracy and stability while maintaining the speed of an analog source. Fully synthesized CW, stepped and ramp sweep modes are available in broadband and narrowband operation. The synthesis capability is particularly useful for the characterization of narrowband devices, in which the frequency instabilities of open-loop sources become most apparent. Excellent output power flatness and accuracy can be translated to the input port of the device under test with the power flatness correction feature of this source.

  • Fully phase locked analog sweep for accuracy and speed
  • Flat and accurate output power to characterize the linear response of the test device
  • Offset frequency sweep for mixer test
  • Agilent 8350 programming mode for backwards compatibility
