Showing Results for Keysight Technologies (Agilent HP) 34901A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 34901A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1020 to $175 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 34901A () Main Features and Specifications

Product Specs

  • Status -

See also

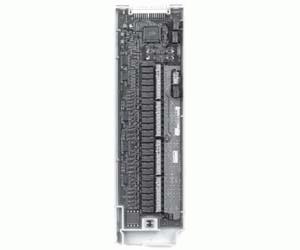

The Agilent 34901A module for the 34970A Data Acquisition/Switch Unit is the most versatile multiplexer for general purpose scanning. It combines dense, multi-function switching with 60 channel/second scan rates to address a broad spectrum of data acquisition applications.

Two- and four-wire channels can be mixed on the same module. Two additional fused inputs (22 channels total) route up to 1A of current to the internal DMM, allowing ac and dc current measurements without the need for external shunt resistors.

  • 20 Channel Multiplexer
  • Two additional current channels (22 total)
  • Input: 300 V, 1 A, 50 W
  • Two- and four-wire scanning
  • 300 V switching
  • 60 ch/s scanning
  • Built-in thermocouple reference junction
  • Connects to 34970A internal DMM
  • Multiple channel closures allowed when not configured for scanning
