Boonton Electronics 4300 (4300 RF Power Meter) Main Features and Specifications

Product Specs

  • Sensors 51075,077,079;071,072;51100,101,102;51200,201,300,301,51085,086,087,51011,012,013,015,033
  • Freq. Range Low 10 kHz
  • Freq. Range High 100 GHz
  • Sensor Type Diode,Thermocouple
  • Computer Interface GPIB, RS-232 - opt.
  • Status -

The high-speed Boonton 4300 is the world only power meter capable of making up to six power measurements simultaneously. It has a dynamic range of -70 dBm to +44 dBm (sensor dependant) over a frequency range of 10kHz to 100 GHz. Diode and thermocouple sensors with up to 90 dB of dynamic range are available.

  • Channel math between all six channels
  • Up to 30 readings per second over the GPIB for a single channel and up to 100 readings per second for a six-channel meter
  • Duty cycle entry for pulse power measurements
  • Programmable 30 MHz calibrator option significantly improves measurement accuracy

Get Price Quotes

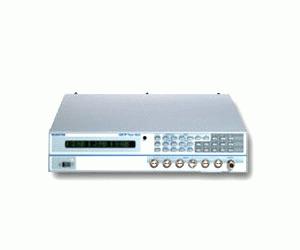

Boonton 4300 RF Power Meter
  • $2,597
    • In Stock
