Showing Results for Tektronix 475DM44

2 results found for Tektronix 475dm44
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix 475DM44 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

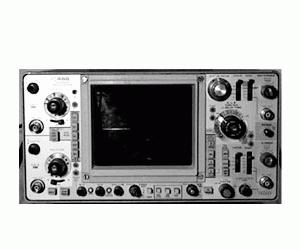

Tektronix 475DM44 (Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 250 MHz
  • Channels 2
  • Status Discontinued

The specification of the Tektronix 475DM44 oscilloscope is similar to the 475 oscilloscope. The DM44 uses a 3 1/2 digit LED Display with five seven segmet arrays. It can measure in on of these modes: voltage, resistance, temperature or 1/TIME and TIME (in ms or µs and 1/ms or 1/µs indicated by two LED). The instrument can measure time by using two moveable intensified horizontal zones within the CRT. For example measures delay sweep time, rise time, frequency, period and phase shift. On the left side of the DM44 there are two banana jacks and a temperature probe tip connector.

  • DC Voltage Ranges 0 to 1.2 kV in 5 steps from 200 mV, 2 V, 20 V, 200 V and 1200 V
  • Resolution 100 µV Accuracy within 0.1% of reading, +/-1 count
  • Input Resistance 10 megohm, all ranges (user option, remove an internal wire strap to increase input resistance to 1 Gohm on the 200 mV and 2 V range
  • Rejection Ratio Normal Mode, at least 60 bD at 50 and 60 Hz
  • Rejection Ratio Common Mode, at least 100 dB at DC and 80 dB at 50 and 60 Hz
  • Recycle Time approximately 3.3 measurements per second
