Tektronix 2784 (High Performance Microwave Spectrum Analyzers) Main Features and Specifications

Product Specs

  • Low end frequency limit 100Hz
  • High End Frequency Limit 40 GHz
  • Resolution Bandwidth Min. 3Hz
  • Resolution Bandwidth Max. 10 MHz
  • Status Discontinued
  • Supported until Dec-2002

The 2784 High Performance Microwave Spectrum Analyzer has a frequency range of 100 Hz to 40GHz and a 100 dB display dynamic range.

  • Mixed input decoupling
  • Exclusive bandwidth mode
  • Built-in automation
  • Macro downloading
  • Soft key Menu
  • Resolution bandwidths from 3Hz to 10MHz in a 1, 3, 10
  • Sweep Time 2 us - 200 s
  • Resolution Bandwidth 3 Hz - 10 MHz
  • Bandwidth Steps 1/3/10
  • Displayed Average Noise -107 dBm -78 dBm
  • Maximum Dynamic Range 100 dB
  • Trigger Source Internal
  • Trigger Modes Freerun,TTL

Support limited to Calibration after December, 2002.

Get Price Quotes

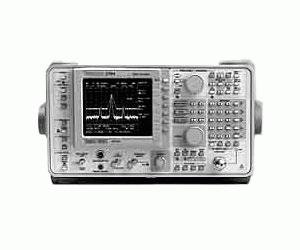

Tektronix 2784
  • $6,500
    • In Stock
