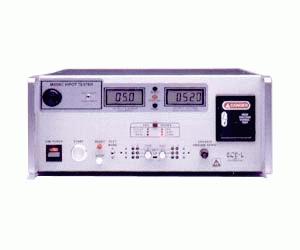

Rod-L Electronics M150AC (AC Hipots) Main Features and Specifications

Product Specs

  • Max. Output AC Voltage 5 kV
  • Output AC Current 5 mA
  • Additional Measurements Dielectric withstand test,Ground continuity
  • Status -

All ROD-L hipot testers have adjustable electronically controlled test voltage ramp control and timing circuits. In addition, ROD-L AC and DC hipot testers interconnect to simplify multiple testing requirements. Each are compatible with all ROD-L Ground Continuity and Leakage Current test instruments.

  • Digital display Resolution of programmable test parameters is 0.5%
  • Performs an AC dielectric strength (Hipot) test concurrent with a ground continuity test
  • Applies a test potential of up to 5000 VAC at 50 milliamps (user programmable)
  • Performs tests in full compliance with UL, VDE, BSE, IEC, CSA, and other test standards -488 BUS-compatible - enables data logging during each test, and remote programming of:
    • Test voltage
    • Test time
    • Voltage ramp rate
    • Real current trip point
    • Total current trip point
    • Under current trip point
  • Performs tests in full compliance with UL,VDE,IEC,CSA, and other test standards
