Showing Results for Philips PM3323

3 results found for Philips pm3323
Similar models:  Philips PM3320  Philips PM3320A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Philips PM3323 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Philips PM3323 (Oscilloscopes) Main Features and Specifications

Product Specs

  • Status Discontinued

See also

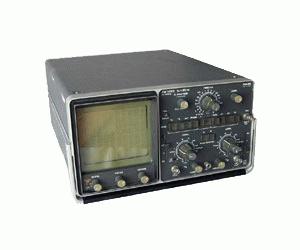

  • The Philips PM3323 Digital Storage Oscilliscope provides extensive acquisition, calculation and display functions in the frequency range up to 300 MHz.
  • The PM 3323  fast 500 MS/s sampling rate applies to both channels, simultaneously and synchronously.
  • Input impedance selectable between 50 Ohms and 1 MOhm.
  • It offers a full 2 ns resolution for each channel, for repetitive and single events.
  • Random sampling permits the use of higher time base speeds for repetitive signals, so that the full 300 MHz of the instrument can be used and stored.
  • Automatic cursor positioning and measurements of amplitude, time, frequency and phase.
  • The PM 3323 has a large 10 cm x 12 cm CRT screen. The edges of the screen show acquisition parameters of the live signals.
  • The interface option offers full GP-IB (HP-IB/ IEEE 488) and RS-232 C capabilities.
