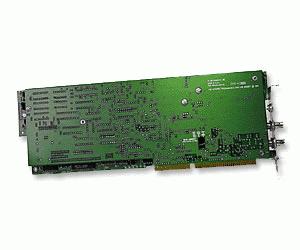

PC Instruments PCI-426 (Single-Channel PCI-420 Family) Main Features and Specifications

Product Specs

  • Status Discontinued

See also

The 2 GHz bandwidth found on the PCI-426 Single Channel Sampling Digital Oscilloscope and the PCI-436 Dual Channel Sampling Digital Oscilloscope is the highest bandwidth found on any card-based oscilloscope in the world. These sampling digital oscilloscopes have been optimized for measuring repetitive waveforms with pulse repetition frequencies (PRFs) of 5 kHz and higher. These oscilloscopes feature a measurement risetime of 175 ps, 50 Ohm input impedance, seven vertical voltage ranges, offset control, and a timebase from 500 ps/div up to 1 us/div. A proprietary Equivalent Time Sampling (ETS) circuit is used to provide equivalent sample rates up to 200 Gigasamples/second. No other oscilloscope board in the world comes close to the bandwidth and equivalent-sampling rate provided by the PCI-426 and PCI-436.

  • Time Domain Reflectometry (TDR)
  • High Speed Digital (pulse) Measurements
  • Analog Component Pulse Response (e.g. DACs and Op-Amps)
  • High Speed Laser Detector Measurements
  • Nuclear Magnetic Resonance (NMR) Carriers
  • Wireless Carrier Analysis
  • High Speed Serial Bus Pulse Response (e.g. Firewire, IEEE-1394)
  • TDMA Power Ramp-Up Analysis
