Krohn-Hite Corp. 7600M (Wideband Power Amplifiers) Main Features and Specifications

Product Specs

  • Status -

See also

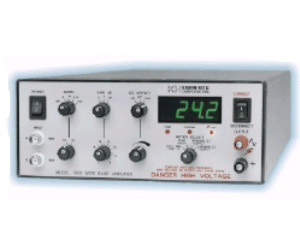

The Models 7600 provide 17 watts of continuous power (34 watts at dc) and 141V rms from dc to 500kHz. The frequency response of the 7600 is ±0.1dB to 10kHz, and the distortion contributed by the amplifier is <0.01% to 5kHz and <0.3% to 100kHz. The voltage gain can be either inverting or non-inverting and has selectable ranges from 0dB-14dB, 0dB-28dB and 0dB-42dB, and is continuously variable between ranges. Other features include: modes of A, A–B and –B, common mode rejection of 80dB, input coupling of ac or dc, dc offset control that is variable from 0V to ±200V; an optional meter package that provides a meter for displaying the heat sink temperature in °C, output peak voltage and average output current.
