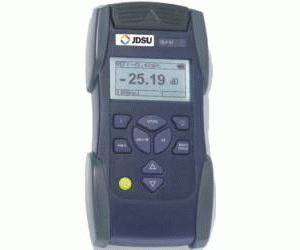

JDSU OLP-55 (2277/03) (SMART Optical Power Meters) Main Features and Specifications

Product Specs

  • Measurement Units dB,dBm,Watt
  • Low end wavelength limit 800 nm
  • High End Wavelength Limit 1.7 µm
  • Power Range -60 dBm to +26 dBm
  • Accuracy +/- 3% intrinsic uncertainty
  • Type Fiber Optic
  • Status -

See also

The OLP-55 and OLP-57 SMART Optical Power Meters are designed for installing, testing, and maintaining singlemode and multimode networks and cables. The SMART Optical Power Meters define a new industry standard with a unique built-in auto-zeroing function for auto dark current compensation. This function significantly increases accuracy.

The OLP-55 and OLP-57 SMART Optical Power Meters can be part of a SMART Optical Test Kit. The SMART Optical Test Kits contain all of the tools, including instruments and accessories, necessary to perform professional-grade power or loss tests in the field.

  • Up to 900 calibrated wavelengths for the highest performance range in the industry
  • A large storage capability for up to 1000 test results with automatic date/time stamp
  • First auto-zeroing function in the industry - for outstanding accuracy with no manual zeroing required. The OLP-55 and OLP-57 offer the highest accuracy on the market
  • Illuminated graphical user interface (GUI) displays all of the parameters and up to three test results simultaneously
  • A USB port for remote operation as well as easy report generation and analysis
  • Auto-lambda function provides automatic wavelength detection to speed up testing and avoid instrument setting failures
  • Universal optical adapter system, including UPP adapters, ensures adaptation to all of the connectors in the field
  • The SMARTStar graphical user interface for fast, easy, and straightforward operation
  • The SMARTEnergy power supply management system
  • Traceable measurements to NIST/PTB standards for confidence in accuracy
  • Visual fault locator option
  • Host USB data storage option
  • A robust, shock-proof, and splash-proof design for field operation
  • One-handed operation in the field
  • Quick start operation, requiring no warm-up time and reducing testing time
  • FTTx ready
