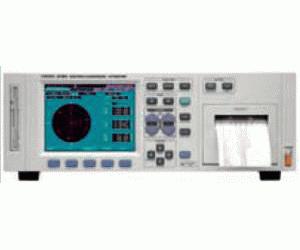

Hioki 3194 (Bench Type Power Analyzers) Main Features and Specifications

Product Specs

  • Input Channels 3
  • Instrument Type Benchtop
  • Interfaces RS-232,Screen,GPIB,Printer,Floppy
  • Operation Modes Power Analyzer, Meter, Harmonic Waveform Analyzer
  • Measurements Voltage, Current, Active/Reactive/Apparent Power, Power Factor, Phase, Frequency, High-Order Harmonics (Percentage, Phase Angle), THD-F, THD-R, Torque, Rotation Speed
  • Status -
  • Launch Date Jan-2002

See also

The 3194 Motor / Harmonic HiTester provides analysis of high-order harmonics up to the 3000th order. Additionally, with the optional 9603-01 EXTERNAL SIGNAL INPUT UNIT installed, the HiTESTER can directly measure torque and rotation speed, an essential feature for evaluating the performance of inverter motors. This makes it easy to construct measurement systems.

  • Single-phase/2- and 3-wire, three-phase/3- and 4-wire
  • Up to 3 channels from channels 1 to 6
  • Measures voltage, current, active/reactive/apparent power, power factor, phase, frequency, current
  • Capable of integrating power according to polarity
  • Provides wave peak and efficiency measurements
  • Measures harmonic level, percentage and phase angle of harmonic wave, total harmonic distortion (THD-F, THD-R)
  • List, graph, vector, and waveform displays
