Here you will find a large selection of new and used Fluke 1650-10 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Fluke 1650-10 (Reliable) Main Features and Specifications

Product Specs

  • Input Channels 9 (4 voltage, 5 current)
  • Instrument Type Portable
  • Interfaces Printer
  • Operation Modes Monitor, Recorder, Scope, Analyzer, Meter
  • Measurements Depending on standards and options: rms volts and amps, watts, KWH phases, VA/VAR, PF, Harmonics (THD, imbalance, spectrum, phase), flicker, waveshape, sags and swells faults, power consumption/tolerance, high-speed impulse
  • Status Discontinued

See also

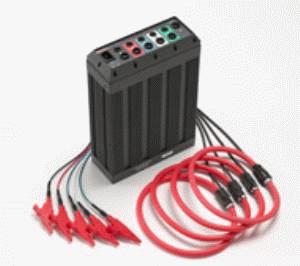

From set-up to finished reports, the RPM Power Recorder is the complete solution to your portable power monitoring needs.

  • 4 voltage channels – three phases plus neutral-to-ground. Measures up to 600 Vrms, 1000 Vpeak
  • 5 current channels allow you to monitor neutral and ground current, in addition to phases
  • Extruded metal enclosure, and designed to handle a life-time of use
  • Capture up to 6,000 simultaneous voltage events with simultaneous current in each monitoring session
  • Multi-session option allows for 16 sessions, effectively multiplying event
  • Capture capability to 96,000 events
  • 128 samples per cycle — on every cycle
  • Supports single-phase, wye, delta, split phase, high-leg delta, open-leg delta, and other common power systems
  • Power Consumption option adds Watts, VA, VAR, PF trends and measurements
  • Harmonics option measures harmonics up to 63rd
  • Nylon and hard-sided cases, mounting brackets, a wide variety of voltage and current probes are available
  • Hostile enclosure
  • Parallel computer interface
  • High speed sampling system
  • PQ measurement option
  • Impulse waveform
  • Multi-session software option
