DEI PVX-4130 (High Voltage Pulse Generators) Main Features and Specifications

Product Specs

  • Status -

See also

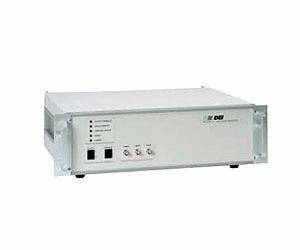

The PVX-4130 pulse generator produces fast, high voltage wave forms to 6000V. Optimized for high impedance capacitive loads, the PVX-4130 is well suited for driving extraction grids and deflection plates for electrostatic modulation of particle beams in time-of-flight mass spectrometers and accelerators. Its robust and versatile design also makes it well suited for pulsing or gating power tube grids,
Pockels cells and Q Switches, acoustic transducers, microchannel plates, photomultiplier tubes and image intensifiers.
The exceptional pulse fidelity of the PVX-4130 will optimize the performance of any system in which it is used.

  • 0 to ±6000V Pulse Output
  • <60ns Rise And Fall Times
  • <150ns to DC Pulse Width
  • >10KHz Pulse Repetition Frequency
  • Optimized To Drive Deflection Plates, Grids And Other Capacitive Loads
  • Protected Against Arcs, Shorts And Load Transients
  • Voltage And Current Monitor Outputs
