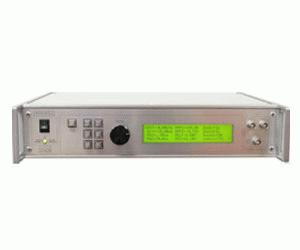

Avtech Electrosystems Ltd. AVL-2-B (AVL Series) Main Features and Specifications

Product Specs

  • Status -

The AVL series provides high amplitude (to ±500V) pulse outputs with rise times as low as 1 ns and fall times of 2 ns, pulse repetition frequencies to 5 kHz and maximum pulse widths variable from 3 to 400 ns.
The AVL-2-B family provides output amplitudes variable from 0 to 320 Volts, with pulse widths variable from 5 to 100 ns, with 2 ns rise time and 4 ns fall times, and repetition rates to 5 kHz.
For all models, either output polarity or an optional dual output polarity can be provided. The output polarity of dual-polarity units can be switched from the front panel or by computer command.
All instruments with the -B suffix include a complete computer control interface. This provides GPIB and RS-232 computer-control, as well as front panel keypad and adjust knob control of the output pulse parameters. A large backlit LCD displays the output amplitude, polarity, frequency, pulse width, and delay. An Ethernet port for Telnet or Web-based control is optional.
All models may be triggered externally using a TTL-level pulse. All models include a delay control and sync output for sampling oscilloscope triggering purposes.
A DC offset or bias insertion option is available.
