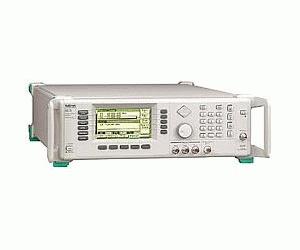

Anritsu 69197A (69A Series) Main Features and Specifications

Product Specs

  • Status Discontinued
  • Launch Date Jan-1999

See also

The 69100A/68100B Synthesized Sweep Generators feature 10 MHz to 65 GHz analog,step and manual sweep capability. Out put levels to +17 dBm and optional 0.1 Hz resolution are available at prices comparable to CW only sources.

The 69300A / 68300B Synthesized sweep/signal generators provide all capabilities of our CW generators, sweep generators and signal generators in a single package

69100A:

  • Ultra-low SSB phase noise; - 100 dBc at 10 KHz offset from 10 GHz
  • 0.01 to 65 GHz frequency coverage in a single coaxial output
  • Waveguide extensions to 110 GHz
  • +17 dBm maximum power, -125 dBm min. power
  • Internal AM,FM, phase and pulse modulation
  • User down-loaded complex modulation
  • Step, analog , power, alternate, master/slave sweep modes
  • User level flatness correction
  • Self-test
  • Secure mode
  • Reset
  • Master/slave operation
  • 360B SS Mode

69197A:

  • Minimum Output Power  -15 dBm
  • Maximum Output Power  12 dBm
  • Power Resolution  0.01 dB
  • Output Accuracy  3.5 dB
  • Output Level Switching Time  20 ms
  • Output Impedance  50 Ohm
  • Minimum Single-Side-Band Noise  -105 dBc/Hz
  • Maximum Single-Side-Band Noise  -54 dBc/Hz
  • Harmonics (noise)  -40 dBc
  • Non-harmonics (noise)  -40 dBc
