Showing Results for Anritsu 5P200

3 results found for Anritsu 5p200
Similar models:  Anritsu 5P100  Anritsu 5P100C  Anritsu 5P200C  Anritsu CMA5
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Anritsu 5P200 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

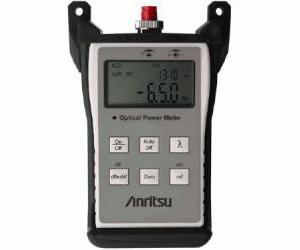

Anritsu 5P200 (CMA5 Series) Main Features and Specifications

Product Specs

  • Measurement Units dBm,Watt
  • Low end wavelength limit 850 nm
  • High End Wavelength Limit 1.6 µm
  • Power Range +10 to -60 dBm
  • Accuracy +/- 0.2 dBm
  • Type Fiber Optic
  • Status -

See also

The CMA5 Series Power Meters are economical, accurate and easy to use handheld units for attenuation and power throughput measurements on point-to-point fiber optic links.

They feature a rugged design, built to withstand the difficult testing environment of fiber optic cable installation and maintenance. A large LCD display and a dual-way powering system including a 9V battery and an optional power adapter, ensure the CMA5 Series will adapt to any situation. With no warm up time, fast response time, auto-zeroing capabilities and tone detection, the CMA5 Series helps reduce measurement time.

The CMA5 Power Meters are ideal for testing single-mode and multimode fibers in various types of applications, thanks to multiple wavelength calibration at 850/1300 nm for datacom testing needs, 1310/1550/1625 nm for all WDM testing, as well as 1490 nm for FTTx testing needs.

  • Pocket-sized and rugged design
  • Three-year warranty
  • Multiple calibration wavelengths to address all network types: datacom, multimedia, WDM as well as FTTx
  • High input power capacity enables optical amplifier characterization and multimedia/CATV measurements
  • Adapters for 5P200: LC, FC, SC, ST
