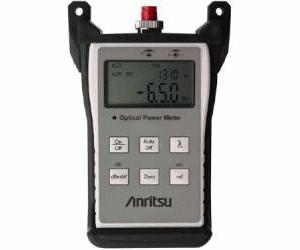

Anritsu 5P100C (CMA5 Series) Main Features and Specifications

Product Specs

  • Measurement Units dBm,Watt
  • Low end wavelength limit 850 nm
  • High End Wavelength Limit 1.6 µm
  • Power Range +23 to -50 dBm
  • Accuracy +/- 0.2 dBm
  • Type Fiber Optic
  • Status -

See also

The CMA5 Series Power Meters are economical, accurate and easy to use handheld units for attenuation and power throughput measurements on point-to-point fiber optic links.

They feature a rugged design, built to withstand the difficult testing environment of fiber optic cable installation and maintenance. A large LCD display and a dual-way powering system including a 9V battery and an optional power adapter, ensure the CMA5 Series will adapt to any situation. With no warm up time, fast response time, auto-zeroing capabilities and tone detection, the CMA5 Series helps reduce measurement time.

The CMA5 Power Meters are ideal for testing single-mode and multimode fibers in various types of applications, thanks to multiple wavelength calibration at 850/1300 nm for datacom testing needs, 1310/1550/1625 nm for all WDM testing, as well as 1490 nm for FTTx testing needs.

  • Pocket-sized and rugged design
  • Three-year warranty
  • Multiple calibration wavelengths to address all network types: datacom, multimedia, WDM as well as FTTx
  • High input power capacity enables optical amplifier characterization and multimedia/CATV measurements
  • Adapters for 5P100C: FC, SC, ST
