Keysight Technologies (Agilent HP) 3764A () Main Features and Specifications

Product Specs

  • Status Discontinued

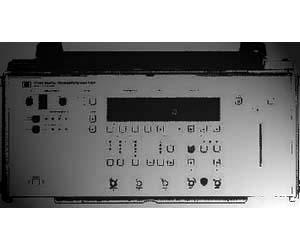

The HP 3764A digital transmission analyzer analyzes the error performance of digital transmission systems. It is available in three different versions to cover a wide range of telecom and general-purpose test applications. Each one features pattern generation and error detection at coded and binary interfaces, and an HP-IB port for remote control operation.

  • Standard: A dedicated 140 Mb/s digital transmission analyzer with pattern generation, error detection, and error analysis. The error analysis includes error performance measurements for testing ISDN (Integrated Services Digital Networks)
  • Multiple frequency: Option 001 - Measurement at the four main CEPT bit-rates of 2, 8, 34, and 140 Mb/s. This reduces the number of test sets required in multiple frequency environments. This rugged option is ideal for field installation and maintenance applications
  • Jitter: Option 002 - Jitter generation and timing jitter measurement at 140 Mb/s, ideal for development and manufacturing applications

This flexibility means that the 3764A suits a wide range of applications, from design and development to commissioning and maintenance.

  • Full 140 Mb/s error measurement
  • Jitter generation and measurement at 140 Mb/s
  • Data logging
  • One-key measurement setup using presets
  • Portable single-unit construction
  • Generator:
    • Internal clock: 139.264 MHz
    • Offset clocks: + and - 15 ppm
    • External clock: 1 kHz to 170 MHz
    • Data outputs: CMI format at 139.264 Mb/s; Binary RZ or NRZ from 1 kb/s to 170 Mb/s, ECL levels, 75 ohms unbalanced
    • Patterns: PRBS 223-1; WORD, 1 to 16-bit fully programmable; ALT WORD, two 1 to 8-bit programmable words, crossover rate controlled by external signal; AIS, "all ones" pattern
  • Receiver:
    • Recovered clock: 139.264 ±3 Mb/s
    • Binary clock: 1 kHz to 170 MHz
    • Data inputs: 75 ohm Terminated mode: Monitor mode; Binary, RZ or NRZ, ECL levels; External Error, ECL levels
  • Measurements:
    • Error performance: % Availability, % ER ≤ N, % EFS
    • Errors: Error Ratio, Error Count, Error Seconds, Error Free Seconds
