Showing Results for Keysight Technologies (Agilent HP) 8902A

24 results found for Agilent hp 8902a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8902A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3195 to $2295 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8902A (Measuring Receivers) Main Features and Specifications

Product Specs

  • Status Discontinued
  • Supported until Nov-2012
  • Alternative N5531S Measuring Receiver

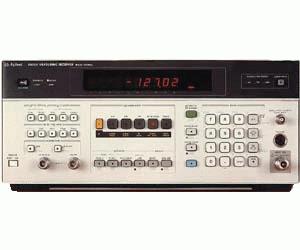

The Agilent 8902A measuring receiver delivers the accuracy and resolution of a high performance power meter at frequencies from 150 kHz to 1.3 GHz (50 MHz to 26.5 GHz with the Agilent 11793A microwave converter) and levels from +30 dBm to -127 dBm. It accurately measures AM, FM and M, including residuals and incidentals, with a single keystroke. The Agilent 8902A measuring receiver, with the Agilent 11793A, counts RF signals to 26.5 GHz with 10 Hz resolution and excellent long-term frequency stability. The 8902A measuring receiver with Option 050 offers increased power measurement accuracy. This option specifies Tuned RF Level on the 8902A measuring receiver to an accuracy of ±(0.015 dB + 0.005 dB/10 dB step).

  • RF power: digital power meter accuracy
  • Tuned RF level: 0 to -127 dBm dynamic range
  • Carrier noise: AM and phase noise measurements to -140 dBc/Hz
  • AM and FM: 1% accuracy; Phi-M:3% accuracy
  • RF frequency: 1 Hz resolution
  • Audio: level, frequency, and distortion
