orensen (Ametek) XPL Series - 30 to 125W (XPL Series) Main Features and Specifications

Product Specs

  • Number of Outputs Triple
  • Max. Voltage 56V
  • Max. Current 3.3A
  • Ripple and Noise <1 mVrms
  • Computer Interface No
  • Status -

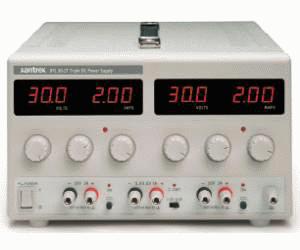

An economical and compact benchtop power supply, the XPL provides excellent line and load regulation ranging up to 125 watts.

The XPL Series includes the following models:

  • XPL 18-3
  • XPL 30-1
  • XPL 30-2
  • XPL 30-2D
  • XPL 30-2T
  • XPL 56-1

The Xantrex XPL series has been designed to meet the need for compact power supply at a reasonable price. The XPL series provides 30 to 125 watts of programmable linear DC power. The XPL is a compact, high performance low cost power supply suited for benchtop applications.

The XPL Series uses linear regulation for high performance. The XPL Series features excellent line and load regulation with low noise and good transient response. The XPL Series is available in a single, dual and triple output for benchtop use.

The XPL dual output model has two independent and isolated outputs each with a 0 to 30V, 0 to 2A capability and its own on-off switch. The outputs can be wired in either series or parallel to provide voltages up to 60 volts or currents up to 4 amps. All outputs are instrinsically short circuit proof, and are protected against external voltages and reverse currents. The XPL triple output model has the same features as the dual output model with an additional switchable fixed output of 3.3V and 5V.

  • Low noise
  • Excellent line/load regulation
  • Coarse and fine voltage controls
  • Constant voltage or constant current operation with automatic crossover and mode indication
  • Individual on/off switch per output (not including fixed output)
  • Switchable 3.3V/5V output on triple output model
