Here you will find a large selection of new and used BK Precision 1651A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

BK Precision 1651A (Triple Output DC Power Supplies) Main Features and Specifications

Product Specs

  • Number of Outputs Triple
  • Max. Voltage 24V
  • Max. Current 5A
  • Ripple and Noise <=1 mVrms
  • Computer Interface No
  • Status -

See also

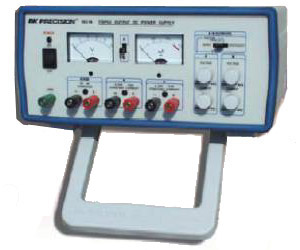

The model 1651A Triple Output DC Power Supply has two 0 to 24VDC outputs capable of supplying 0 to 500mA, and one fixed 5VDC output capable of supplying up to 4A. Connect outputs in series for higher voltage or connect in parallel for higher current output (switch selectable). Voltage and current metering is provided by two, analog displays. This unit is fully short circuit, overload, and reverse polarity protected.

  • Two 0 to 24 VDC outputs (0.5A)
  • One fixed 5V output (4A)
  • Independent or tracking operation
  • Adjustable current limiting
  • Designed to operate continuously at rated output
  • Short circuit protection, over voltage protection, reverse polarity protection
  • Connect outputs in series for higher voltage output or in parallel for higher current output (switch selectable)
