orensen (Ametek) XPD Series - 500W (XPD Series) Main Features and Specifications

Product Specs

  • Number of Outputs Single
  • Max. Voltage 120V
  • Max. Current 67A
  • Ripple and Noise 3 mVrms
  • Computer Interface GPIB,RS-232
  • Status -

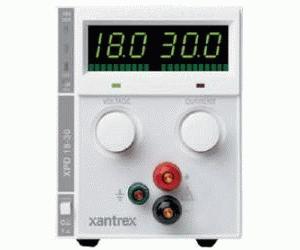

With up to 540 watts of programmable DC power in a quarter-rack wide chassis, XPD is the highest power density product available in its power range. Choose from five models for benchtop and OEM applications, where a wide adjustment of output voltage or current is required in a compact package:

  • XPD 120-4.5
  • XPD 18-30
  • XPD 33-16
  • XPD 60-9
  • XPD 7.5-67
XPD utilizes state-of-the-art zero voltage or "soft" switching technology to virtually eliminate switching transients for high efficiency, low noise and high reliability. It is also power factor corrected for low current draw and reduced generation of input current harmonics. For systems applications, XPD can be rack mounted in multiple-unit configurations of up to four independent 500 watt outputs. For example, XPD can be combined with other programmable DC power supplies such as the quarter-rack 300 watt HPD and the 60 watt XT.
  • 85-264 VAC Universal Input
  • LabView® drivers
  • Front and rear connectors
  • Ten-turn front panel knobs
  • Remote sense, 5 V line loss compensation
  • CE, CSA, UL approvals
