orensen (Ametek) DCS600-1.7 () Main Features and Specifications

Product Specs

  • Max. Voltage 600V
  • Max. Current 1.7A
  • Ripple and Noise 100 mVrms
  • Computer Interface GPIB
  • Status Discontinued

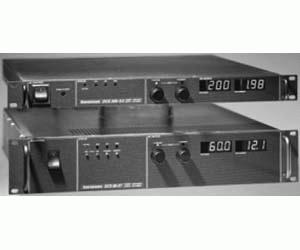

The Sorensen DCS Series 1000 W power supplies are designed to provide highly stable, continuously variable output voltage and current for a broad range of development, system, and burn-in applications. The series consists of nine models designated by the DCS prefix, followed by the output voltage and current ratings.

The supply has two basic operating modes: Constant Voltage and Constant Current. In constant voltage mode the output voltage is regulated at the selected value while the output current varies with the load requirements. In constant current mode the output current is regulated at the selected value while the output voltage varies with the load requirements. An automatic crossover system lets the unit switch operating modes in response to varying load requirements.

DCS 1000 W supplies:

  • Nine models with voltage ranges from 0-8 Vdc to 0-600 Vdc and current outputs from 1.7 A to 125 A
    • DCS8-125
    • DCS20-50
    • DCS33-33
    • DCS40-25
    • DCS60-18
    • DCS80-13
    • DCS150-7
    • DCS300-3.5
    • DCS600-1.7
  • 115/230 Vac selectable input voltage, 47-63 Hz single phase
  • Simultaneous digital display of both voltage and current
  • Ten turn potentiometer voltage and current controls permit high resolution setting of the output voltage and current from zero to the rated output
  • Automatic mode crossover into current or voltage mode
  • Flexible output configuration: multiple units can be connected in parallel or series to provide increased current or voltage
  • High frequency switching technology allows high power density, providing increased power output in a small, light package
  • Remote sensing to compensate for losses in power leads up to 1 V/lead (0.5 V/lead for DCS8-125 model)
  • Adjustable over-voltage protection (OVP)
  • External TTL, AC, or DC shutdown
  • Remote voltage, current limit, and OVP programming with selectable programming constants
  • External indicator signals for remote monitoring of OVP status, local/remote programming status, thermal shutdown, and output voltage and current
  • Optional IEEE-488 interface for complete remote programming and readback capability

DCS600-1.7:

  • Output voltage: 0-600 V
  • Output current: 0-1.7 A
  • Output power: 1020 W
  • OVP adjustment range: 30-660 V
  • Output noise and ripple: 100 mVrms
