orensen (Ametek) DCS55-55 () Main Features and Specifications

Product Specs

  • Max. Voltage 55V
  • Max. Current 55A
  • Ripple and Noise 20 mVrms
  • Computer Interface GPIB
  • Status Discontinued

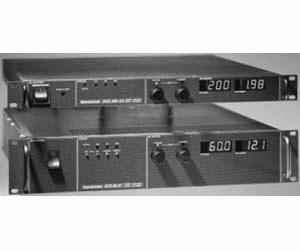

The DCS Series System Supplies are 3000 watt supplies designed to provide highly stable, continuously variable output voltage and current for a broad range of development, system, and burn-in applications. The DCS Series employs high frequency switching regulator technology to achieve high power density and small package size.

DCS 3kW Series:

  • Eight models with voltage ranges from 0-8 Vdc to 0-150 Vdc and current outputs from 20A to 350A
    • DCS8-350
    • DCS12-250
    • DCS20-150
    • DCS40-75
    • DCS55-55
    • DCS60-50
    • DCS80-37
    • DCS150-20
  • Input voltage 190-250 Vac, three phase, 47-63 Hz or 200-250 Vac, single phase, 47-63 Hz
  • Simultaneous digital display of both DC output voltage and current
  • Ten-turn potentiometer voltage and current controls permit high resolution setting of the output voltage and current from zero to the model-rated output
  • Front panel push button control of Output Standby Mode, OVP reset, Remote/Local Programming Mode selection, and preview of voltage, current, or OVP points
  • External indicator signals for Remote Monitoring of OVP Status, Local/Remote Programming Status, Thermal Shutdown, and Output Voltage and Current
  • Current or Voltage Mode operation with Automatic Mode Crossover to respond to varying load requirements
  • Flexible output configuration where multiple units can be connected in series or in parallel to provide increased voltage or increased current
  • Remote Sensing to compensate for losses in power leads up to 1 V per lead
  • Adjustable Over Voltage Protection (OVP)
  • External Shutdown using AC, DC, or TTL compatible signals (positive or negative logic)
  • Remote Voltage, Current Limit, and OVP Programming with selectable programming ranges
  • Optional IEEE-488 (GPIB) interface for complete digital remote programming and readback capability

DCS55-55:

  • Output voltage: 0-55 V
  • Output current: 0-55 A
  • Output power: 3025 W
  • OVP adjustment range: 2.75-60.5 V
  • Output noise and ripple: 20 mVrms
  • Analog programming linearity:
    • Voltage - 550 mV
    • Current - 550 mA
  • Maximum Voltage Differential from output to safety ground: 400 Vdc

Get Price Quotes

Sorensen DCS55-55 DC Power Supply, 0-55V, 0-55A
  • $1,570
    • In Stock
