BK Precision 1672 (Triple Output Quad Display DC Power Supplies) Main Features and Specifications

Product Specs

  • Number of Outputs Triple
  • Max. Voltage 32V
  • Max. Current 3A
  • Ripple and Noise <=1 mVrms
  • Computer Interface No
  • Status -

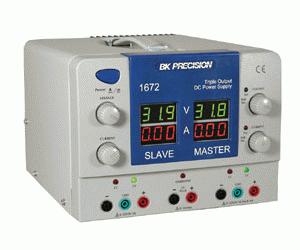

The Model 1672 is a Quad Display Triple Output DC Regulated Power Supply that provides one fixed output (5V/ 3A) and two variable outputs (0 – 32V/ 0 – 3A) ratings. The four displays allows the user to continuously monitor the voltage and current values of the two main outputs. The variable outputs can work independently, or in series tracking, or parallel mode.

  • Independent control of Voltage and Current for variable output
  • CV/CC operation
  • Separate 3 digit displays for voltage (Green) and current (Red) for both variable outputs
  • LED indication for CV (Green) and CC (Red) modes
  • Overload indication LED for Fixed output
  • Series tracking and parallel mode operation for Triple output unit
  • Output terminals are banana style (not binding posts)
