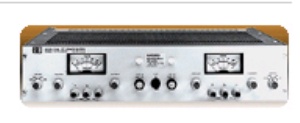

Keysight Technologies (Agilent HP) 6255A () Main Features and Specifications

Product Specs

  • Number of Outputs Dual
  • Max. Voltage 40V
  • Max. Current 2A
  • Ripple and Noise 0.2 mVrms
  • Status Discontinued
  • Supported until Dec-2003
  • Alternative E3616A
Dual power supply ;Auto-series, auto-parallel operation Auto-tracking ;Output ratings (0 - 55 deg C): 60W, 0-40 V, 0-1.5 A Ripple and noise (20 Hz to 20 MHz): CV: 200 uV rms, 1 mV peak-to-peak; CC: 500 uA Load regulation: 0.01% + 2 mV, 0.01% + 250 uA Line regulation: 0.01% + 2 mV, 0.01% + 250 uA Physical Specifications: Weight: 12.7 kg (28 lb) Dimensions: 3.5"H x 14.5"D x 19"W
