Keysight Technologies (Agilent HP) 6228B () Main Features and Specifications

Product Specs

  • Number of Outputs Dual
  • Max. Voltage 50V
  • Max. Current 1A
  • Ripple and Noise 0.25 mVrms
  • Status Discontinued
  • Supported until Dec-2003
  • Alternative E3617A

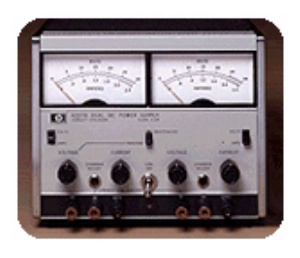

The Agilent 6228B series of power supplies combines the versatility of a dual power supply with the flexibility of auto-series and auto-parallel operation, each supply can deliver the maximum-rated output voltage or current of each section. Auto-series, auto-parallel operation ;Auto-tracking Output ratings (0 - 55 deg C): 0-50 V, 0-1 A Ripple and noise (20 Hz to 20 MHz): CV: 250 uV rms, 4 mV peak-to-peak; CC: 250 uA rms, 2 mA peak-to-peak Load regulation: 0.01% + 1 mV, 0.01% + 250 uA ;Line regulation: 1 mV, 100 uA
