Showing Results for Chroma 62000B

5 results found for Chroma 62000b
Similar models:  Chroma 62015B-150-10
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Chroma 62000B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

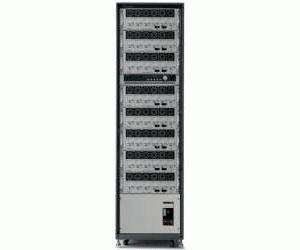

Chroma 62000B (62000B Series Mainframe) Main Features and Specifications

Product Specs

  • Status -

See also

The new Chroma 62000B series of Modular DC Power Supplies offer many unique features for Burn-in and plating applications. The features include a N+1 redundancy, high power densities, hot-swappable maintenance, remote ON/OFF and programmable control via the CAN bus.

The 62000B mainframe can contain up to 5 different modules ranging from 1.5 KW per module up to 120 KW, 2000 A and 150 V per system. Two models are available - a three position or an six position mainframe.

The 62000B is controllable via the CAN bus making them ideal for bulk power applications.

The Modular DC Power Supplies of 62000B are very cost effective with high power density and low current ripple. These instruments have been designed for burn-in applications such as LCD panels, DC-DC converters, power inverters, notebook computers, battery chargers and many other types of electronic
devices.

Modern power factor correction circuitry is incorporated in the 62000B providing an input power factor above 0.98 to meet the IEC requirements. This PFC correction circuity not only reduces the input current but also raises the operating efficiency to over 80%.

Optional graphic SoftPanels and CAN bus control allow for control and monitoring of the power system using an easy to use graphical interface.
