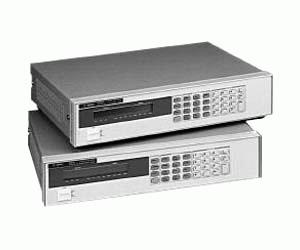

The Agilent 6063B is a 250 W, single output electronic load, ideal for evaluation of DC power sources and power components in bench applications. The 6063B has built-in measurement functions that make it convenient for testing single output applications in areas such as research and development, production, and incoming inspection. Entering commands manually using the front panel keypad is simple because the channel does not need to be specified, as in a mainframe configuration. The 6063B uses industry standard SCPI instructions, and also has VXI Plug&Play drivers to simplify system design.

• Output ratings
  • Amperes: 0 to 10 A
  • Volts: 3 to 240 V
  • Maximum power: (at 40° C) 250 W
• Constant current mode
  • Ranges: 0 to 1 A, 0 to 10 A
  • Accuracy: 0.15% +/-10 mA
  • Regulation: 8 mA
• Constant Voltage Mode
  • Accuracy: 0.12% +/-120 mV
  • Regulation (w/remote sense): 10 mV
• Constant Resistance Mode 0.20 to 24.0 Ω
  • Ranges: 24 to 10,000 Ω / 240 to 50,000 Ω
  • Accuracy: 24 Ω: 0.8% +/-200 mΩ (with ³1 A at input) / 10 KΩ/: 0.3% +/-0.3 mS (with ³24 V at input) / 50 KΩ: 0.3% +/-0.3 mS (with ³24 V at input)
• Transient generator frequency range: 0.25 Hz to 10 kHz with 3% accuracy
• Ripple and noise:
  • Current: 10 mAp-p
  • Voltage: 6 mVrms
