Showing Results for Keysight Technologies (Agilent HP) 60502B

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 60502B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1750 to $898 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 60502B () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative N3304A 300 Watt Electronic Load Module

See also

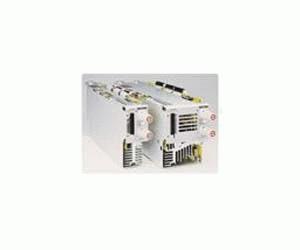

The Agilent 60502B module along with the dc electronic load mainframe is ideal for the test and evaluation of dc power sources and power components and is well suited for applications in areas such as research and development, production, and incoming inspection. Each module includes programming inputs that allow control of load current via an analog control voltage.

  • 300 watt dc electronic load module
  • Voltage: 3 V to 60 V
  • Current: 0 to 60 A
  • Constant Voltage Mode Range: 0 to 60 V
  • Constant Current Mode Ranges: 0 to 6 A; and 0 to 60 A
  • Constant Resistance Mode Ranges: 0.033 to 1 Ohms; 1 Ohms to 1 kOhms; and 10 Ohms to 10 kOhms
  • Voltage Readback Resolution: 17 mV (via GPIB); 20 mV (front panel)
  • Current Readback Resolution: 17 mA (via GPIB); 20 mA (front panel)
  • PARD: Voltage: 6 mV rms; Current: 4 mA rms/40 mA p-p
  • Analog voltage control in constant current mode
  • Full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity
