Keysight Technologies (Agilent HP) E3620A () Main Features and Specifications

Product Specs

  • Number of Outputs Dual
  • Max. Voltage 25V
  • Max. Current 1A
  • Ripple and Noise 350 µVrms, 1.5 mVp-p
  • Computer Interface No
  • Status -

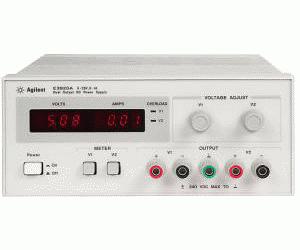

The E3620A is a compact, affordable supply that provides two independent, isolated outputs for versatile benchtop testing.

  • Save space on the bench with a small, dual-output supply
  • Enhance measurement results via low-noise output with excellent regulation
  • Monitor output with overload indicator and front panel meters
  • Achieve precise adjustments via ten-turn pots
  • Output Ratings (Maximum current is derated 3.3% per °C from 40°C to 55°C)
    • Output 1: 0 to 25 V, 0 to 1 A
    • Output 2: 0 to 25 V, 0 to 1 A
  • Power (max): 50 W
  • Ripple & Noise from 20 Hz to 20 MHz
    • Normal Mode Voltage rms: 350 µV
    • Peak-to-Peak: 1.5 mV
  • Load & Line Regulation: 0.01% + 2mV
  • Meter Resolution
    • Voltage: 10 mV (0-20 V), 100 mV, (>20 V)
    • Current: 1 mA
