Showing Results for Keysight Technologies (Agilent HP) 6634A

9 results found for Agilent hp 6634a
Similar models:  Keysight Technologies (Agilent HP) 6632A  Keysight Technologies (Agilent HP) 6633A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 6634A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $588 to $260 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

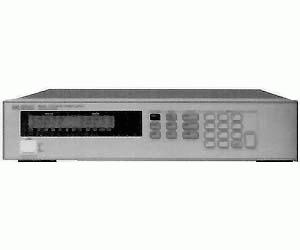

Keysight Technologies (Agilent HP) 6634A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 6634B 100 Watt System Power Supply, 100V, 1A

See also

The HP 6632A, 6633A, and 6634A power supplies feature a combination of programming capabilities and linear power supply performance that makes them ideal for power system applications. The models in this family offer 100 watts of output power.

The power supply is a single range unit with the capability of sinking as well as sourcing current. The output can be programmed both locally from the front panel and remotely over the HP-IB.

Output connections are made to the rear panel screw terminals. Either the positive or negative output terminal can be grounded, or the output can be floated up to +/-240 Vdc from the chassis ground. The output voltage can be sensed locally or remotely. When shipped, the supply is jumpered for local sensing.

The supply has no potentiometers and is calibrated over the HP-IB. Software calibration eliminates the need to remove the supply from your system cabinet.

  • DC output voltage range: 0 to 100 V
  • DC output voltage programming range: 0 to 102.38 V
  • DC output current range: -1 to +1 A
  • DC output current programming range: 0.004 to 1.0238 A
  • DC output OVP programming range: 0 to 110 V
  • Voltage programming resolution: 25 mV
  • Current programming resolution: 0.25 mA
  • OVP programming resolution: 500 mV
  • Voltage programming accuracy: 0.05%
  • Voltage PARD (ripple and noise): 0.5 mV
  • Current PARD: 2 mArms
  • Load transient response: 100 microS
  • Typical voltage readback resolution: 25 mV
  • Self-test at power on or from a command
  • Fast or normal mode operation selectable via rear-panel switch
  • Optional built-in relays and DFI/RI
  • Optional front panel binding posts
