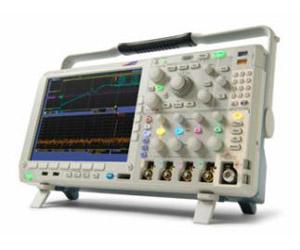

Introducing the world’s first and only mixed domain oscilloscope. For the first time ever, you can capture time-correlated analog, digital and RF signals for a complete system view of your device. See both the time and frequency domain in a single glance. View the RF spectrum at any point in time to see how it changes with time or device state. Solve the most complicated design issues, quickly and efficiently, with an oscilloscope as integrated as your design.

• 4 analog channels: 1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models
• 16 digital channels: MagniVu™ high-speed acquisition provides 60.6 ps fine timing resolution
• 1 RF channel: 50 kHz to 3 GHz or 50 kHz to 6 GHz frequency range models; Ultra-wide capture bandwidth ≥1 GHz

Key features:

• Mixed-domain analysis
  • Time-correlated analog, digital, and RF signal acquisitions in a single instrument
  • Wave Inspector® controls provide easy navigation of time-correlated data from both the time and frequency domains
  • Amplitude, frequency, and phase vs time waveforms derived from RF input
  • Selectable spectrum time to discover and analyze how RF spectrum changes over time - even on a stopped acquisition
• Spectral analysis
  • Dedicated front-panel controls for commonly performed tasks
  • Automated peak markers identify frequency and amplitude of spectrum peaks
  • Manual markers enable non-peak measurements
  • Trace types include: Normal, Average, Max Hold, and Min Hold
  • Detection types include: +Peak, -Peak, Average, and Sample
  • Spectrogram display enables easy observation and insight into slowly changing RF phenomena
  • Automated measurements include: Channel Power, Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW)
  • Trigger on RF power level
  • Triggered or Free Run spectral analysis
• Optional serial triggering and analysis - serial protocol trigger, decode, and search for I2C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I2S/LJ/RJ/TDM
• 10.4 inches (264 mm) bright XGA color display
• Small footprint and lightweight - Only 5.8 inches (147 mm) deep and 11 lb (5 kg)
• Connectivity
  • Two USB 2.0 host ports on the front panel and two on the rear panel for quick and easy data storage, printing, and connecting a USB keyboard
  • USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge®-compatible printer
  • Integrated 10/100/1000BASE-T Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector

MDO4034-3 specifications:

• Analog channels: 4
• RF channels:1
• Digital channels: 16
• Analog channel bandwidth: 350 MHz
• Rise time: 1 ns
• Sample rate: 2.5 GS/s
• Record length: 20 M
• RF channel
  • Frequency range 50 kHz - 3 GHz
  • Real-time capture bandwidth ≥1 GHz
  • Span 1 kHz - 3 GHz, in a 1-2-5 sequence
  • Resolution bandwidth 20 Hz - 10 MHz in a 1-2-3-5 sequence
  • Vertical scale 1 dB/div to 20 dB/div in a 1-2-5 sequence
  • Vertical position -10 divs to +10 divs
  • Vertical units dBm, dBmV, dBμV, dBμW, dBmA, dBμA
  • Displayed average noise level (DANL): 50 kHz - 5 MHz <-130 dBm/Hz; 5 MHz - 3 GHz <-148 dBm/Hz
  • Spurious: 2nd and 3rd harmonic distortion (>30 MHz) <-55 dBc; 2nd order intermodulation distortion <-55 dBc; 3rd order intermodulation distortion <-60 dBc; Other A/D spurs <-55 dBc; Image and IF Rejection <-50 dBc
  • Residual response <-78 dBm
  • Phase noise at 2 GHz CW: 10 kHz <-90 dBc/Hz; 100 kHz <-95 dBc/Hz; 1 MHz <-113 dBc/Hz
  • Residual FM ≤100 Hz peak-to-peak in 100 ms
  • Maximum operating input level: Average continuous power +30 dBm (1 W); DC maximum before damage ±40 V DC; Maximum power before damage (CW) +33 dBm (2 W)
  • RF to analog channel skew <5 ns
  • Frequency domain trace types Normal, Average, Max Hold, Min Hold
  • Time domain trace types: Amplitude vs Time, Frequency vs Time, Phase vs Time
  • Automatic markers One to eleven peaks identified based on user-adjustable threshold and excursion values
  • Manual markers Two manual markers indicating frequency, amplitude, noise density, and phase noise
  • RF acquisition length 2.5 ms to 79 ms, depending on span
• Vertical system analog channels
  • Hardware bandwidth limit: 20 MHz or 250 MHz
  • Input coupling: AC, DC
  • Input impedance: 1 MΩ ±1%, 50 Ω ±1%
  • Vertical resolution: 8 bits (11 bits with Hi Res)
  • Maximum input voltage: 1 MΩ 300 Vrms CAT II with peaks ≤±425 V; 50 Ω 5 Vrms with peaks ≤±20 V
• Vertical system digital channels
  • Input channels: 16 digital
  • Maximum input voltage: ±42 Vpeak
  • Input dynamic range: 30 Vp-p ≤200 MHz; 10 Vp-p >200 MHz
  • Vertical resolution: 1 bit
• Horizontal system analog channels
  • Time base range: 1 ns to 1000 s
  • Maximum duration at highest sample rate: 8 ms
  • Time-base delay time range: -10 divisions to 5000 s
  • Channel-to-channel deskew range: ±125 ns
• Horizontal system digital channels
  • Maximum sample rate (Main): 500 MS/s (2 ns resolution)
  • Maximum record length (Main): 20M points
  • Minimum detectable pulse width (typical): 1 ns
  • Channel-to-channel skew (typical): 200 ps
• Trigger system
  • Trigger modes: Auto, Normal, and Single
  • Trigger holdoff range: 20 ns to 8 s
  • Trigger types: Edge, Sequence (B-trigger), Pulse Width, Runt, Logic, Seup and Hold, Rise/Fall Time, Video, Parallel, and many optional types
• Acquisition modes
  • Sample: Acquire sampled values
  • Peak Detect: Captures glitches as narrow as 1.6 ns at all sweep speeds
  • Averaging: From 2 to 512 waveforms included in average
  • Envelope: Min-max envelope reflecting Peak Detect data over multiple acquisitions
  • Hi Res: Real-time boxcar averaging reduces random noise and increases vertical resolution
  • Roll: Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div
• Waveform measurements: Cursors, automatic measurements in the time and frequency domains, statistics, gating, histogram and histogram measurements, waveform math
• Optional power measurements and limit/mask testing
• Display: 10.4 inch (264 mm) liquid-crystal TFT color display, 1,024 horizontal × 768 vertical pixels (XGA), Sin(x)/x interpolation
• Input/output ports: USB 2.0 high-speed host port, USB 2.0 device port, LAN port, Video out port, Probe compensator output voltage and frequency (amplitude: 0 to 2.5 V; frequency: 1 kHz), Auxiliary out, External reference input, Kensington-style lock, VESA mount
• LAN eXtensions for Instrumentation (LXI): LXI Class C, Version V1.3
