Showing Results for Tektronix 2336

3 results found for Tektronix 2336
Similar models:  Tektronix 2335  Tektronix 2337
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix 2336 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

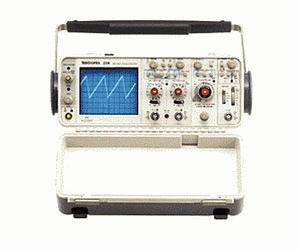

Tektronix 2336 (2-Channel Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 100 MHz
  • Channels 2
  • Vertical Sensitivity Low Range [mV/div] 5
  • Vertical Sensitivity High Range [V/div] 5
  • Status Discontinued

See also

  • Bandwidth 100 MHz
  • Rise time 3.5 ns
  • Number of Channels 2 ch
  • Min. Vertical Sensitivity 5 mV/div
  • Maximum Vertical Sensitivity 5 V/div
  • Vertical(or Deflection Factor) Accuracy 3 %
  • Input Coupling AC,DC
  • Input Impedance 1 MOhm
  • Maximum Input Voltage 400 V(dc+p
  • Main time base - lowest 50 ns/div
  • Main time base - highest10 s/div
  • B Sweep Time Base (low) 50 ns/div
  • B Sweep Time Base (high) 50 ms/div
  • Timebase accuracy 3 %
  • Trigger Sensitivity 0.3 mV
  • Display Type CRT Monochrome
