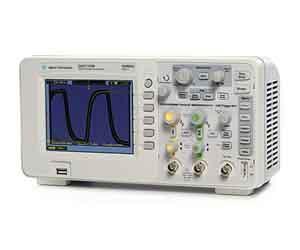

Keysight Technologies (Agilent HP) DSO1102B (1000 Series Economy Oscilloscopes) Main Features and Specifications

Product Specs

  • Bandwidth 100 MHz
  • Channels 2
  • Sample Rate 500 MSa/sec
  • Memory Depth 16 kpts half channel interleaved, 8 kpts all channels
  • Status -
  • Launch Date Jan-2012

See also

The Agilent 1000B Series oscilloscopes deliver the performance and features you expect in a big scope – and the portability and low price you require in a small one. We have enhanced the economy scope by giving you powerful signal capture and display, advanced measurement capabilities and accelerated productivity.

  • Up to 1 GSa/s sample rate
  • Up to 16 kpts memory
  • 5.7-inch color LCD display with wide viewing angle
  • Simultaneous viewing of main and zoomed waveforms
  • 23 automatic measurements
  • Waveform math including FFT
  • Advanced features including: sequential acquisition of up to 1000 trigger events, go/no go mask testing, and selectable digital filters
  • Built-in help menus
  • Front panel overlay, GUI and manual available in 11 languages
  • Free education student lab guide and professor slide set
  • USB connectivity

DSO1102B performance characteristics:

  • Bandwidth (-3dB): DC to 100 MHz
  • Real-time sample rate: 1 GSa/sec half channel interleaved, 500 MSa/sec all channels
  • Memory depth: 16 kpts half channel interleaved, 8 kpts all channels
  • Number of channels: 2
  • Vertical resolution: 8 bits
  • Vertical sensitivity (range): 2 mV/div to 10 V/div
  • Vertical zoom: Vertical expand
  • Maximum input voltage: CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
  • Dynamic range: +6 divisions from center screen
  • Time-base range: 2 nsec/div to 50 sec/div
  • Selectable BW limit: 20 MHz
  • Horizontal modes: Main (Y-T), XY, delayed zoom and roll
  • Input coupling: DC, AC and ground
  • Input impedance: 1 MΩ ±2% in parallel with 15 pF ± 3 pF
  • Acquisition modes
    • Normal: Displays sampled data directly to the screen in real time
    • Averaging: Selectable from 2, 4, 8,16, 32, 64, 128 or 256
    • Sequence: Selectable 1 to 1,000 acquisition frames can be recorded, played back and stored in the scope memory or external USB memory
    • Peak detect: Captures high-frequency glitches as narrow as 20 nsec when viewing signals at slow sweep speeds
    • Roll: Waveform display rolls from right to left. Minimum horizontal scale setting is 50 msec/div
  • Interpolation: Sin (x)/x
  • Trigger coupling: AC, DC, LF reject, HF reject
  • Trigger modes
    • Force: Triggers immediately when front panel button is pressed
    • Edge: Triggers on the positive and/or negative slope on any channel
    • Video: Triggers on NTSC, PAL or SECAM video signals
    • Pulse width: Triggers on pulse width greater than, equal to or less than a specific time limit, ranging from 50 ns to 10 sec
    • Alternate: Triggers on two non-synchronized active channels
  • Trigger source: Ch 1, 2, Ext, AC Line (edge only)
  • Cursor measurement: Manual, track waveform or automatic measurement selections. Manual and track waveform selections provide readout of Horizontal (X, ΔX) and Vertical (Y, ΔY)
  • Auto measurement
    • Voltage: Maximum, minimum, peak-to-peak, top, base, amplitude, average, RMS, overshoot, preshoot
    • Time: Period, frequency, rise time, fall time, + width, - width, +duty cycle, -duty cycle, delay A-->B (rising edge), delay A-->B (falling edge), phase A-->B (rising edge) and phase A-->B (falling edge)
    • Counter: Integrated 6-digit frequency counter on any channel. Counts up to the bandwidth of the scope
  • Display all measurements: Mode to display all single-channel automatic measurements simultaneously on the display
  • Math functions: A+B, A-B, AxB, FFT. Source channel selection for A and B can be any combination of oscilloscope channels 1 and 2
  • AutoScale: Finds and displays all active channels, sets edge trigger modes on highest numbered channels, sets vertical sensitivity on channels, time base to display ~2 periods. Requires minimum voltage >20 mVpp, 1% duty cycle and minimum frequency >50 Hz
  • Display: 5.7 inch diagonal color QVGA TFT LCD display with 300 cd/m2 backlight intensity
    • Display persistence: OFF, Infinite
    • Display types: Dots, Vectors
  • Waveform update rate: 200 wfm/sec
  • Save/Recall internal: 10 setups and 10 waveforms can be saved and recalled using internal non-volatile memory locations. 1 reference waveform can be saved and recalled using an internal volatile memory location for visual comparisons
  • Save/Recall external
    • Setups: STP saved and recalled (Note: setups not transferable between A and B models)
    • Waveforms: WFM saved and recalled, CSV saved
    • Reference waveforms: REF saved and recalled for visual comparisons
    • Images: 8-bit BMP, 24-bit BMP, PNG saved
  • I/O
    • Standard ports: USB 2.0-compliant host port on front panel; USB 2.0 device port for PictBridge compatible printing
    • Max transfer rate: USB 2.0 full-speed up to 12 Mb/sec
    • USB flash drive compatibility: Most FAT formatted <2 GB or FAT32 formatted <32 GB flash drives
    • Printer compatibility: PictBridge-compliant printers via USB device port
