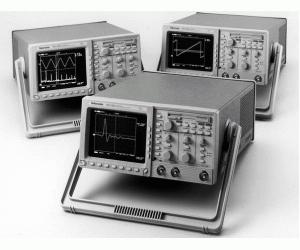

The TDS 300 Series is the Tektronix high-value, low-cost product line for customers who require robust performance at affordable prices. The TDS 300 digital scopes are basic troubleshooting instruments targeted primarily for the education, design, service and repair markets. With the TDS 340, customers can obtain the benefits of digital scopes at a price nearer analog scopes. With the digital capability of the TDS 300 Series, users can store set-ups and waveforms and perform 21 different automatic measurements. They also benefit from the intuitive and simple interface that is the hallmark of the entire Tektronix TDS scope family.

Tektronix achieved benchmark power, performance and price for the new TDS 300 digital scopes by adding standard features like Fast Fourier Transform (FFT) capability for customers at no extra cost. FFT capability is useful for analyzing harmonic content of signals in power supplies, noise in mixed digital/analog systems, line current harmonics and vibration systems. The scope features the Tektronix patented Digital Real-Time (DRT) oversampling technology, which dramatically reduces aliasing and enables single-shot waveform capture at the full bandwidth of the instrument. The two channels  of the TDS 340 digitize at a rate of 500 megasamples per second.

• 2 channels, digital real-time oscilloscope with FFT
• 100 MHz bandwidth
• 500 MS/sec sampling rate
• 4 acquisition modes: Sample, envelope, average, peak detect
• Video and edge triggering capabilities built in
• Transient captures down to 1 ns
• 3½-inch floppy disk drive
