Showing Results for Tektronix DPO3052

8 results found for Tektronix dpo3052
Similar models:  Tektronix DPO3012  Tektronix DPO3014  Tektronix DPO3032  Tektronix DPO3034  Tektronix DPO3054
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Tektronix DPO3052 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

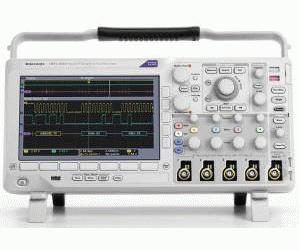

Tektronix DPO3052 (DPO3000 Series) Main Features and Specifications

Product Specs

  • Bandwidth 500 MHz
  • Channels 2
  • Sample Rate 2.5 GSa/sec
  • Memory Depth 5 M record length
  • Status -
  • Launch Date Apr-2008

See also

The DPO3000 Series digital phosphor oscilloscopes (DPO) deliver the performance you need to visualize even your most demanding signals. Bandwidths range from 100 MHz to 500 MHz, and with all models offering a minimum of 5x over-sampling on all channels and sin(x)/x interpolation standard, you can be confident that even the fastest transient events will be captured and displayed accurately. The standard 5M record length on all channels enables you to capture long windows of signal activity while maintaining fine timing resolution. The 50,000 wfm/s waveform capture rate maximizes the probability of capturing elusive glitches and other infrequent events.

Wave Inspector® controls combined with a first-in-class widescreen display helps you quickly search, navigate and see more horizontal on-screen data, so you can catch glitches you might otherwise have missed. And when it comes to serial debug, you can trigger, decode, and search on a host of common standards, including I2C, SPI, CAN, LIN, and more.

  • 2 and 4 Channel Models
  • 5 M uncompromised long record length comes as standard
  • Up to 2.5 GS/s sample rate on all channels for accurate representation of your signal
  • 50,000 wfm/s Maximum Waveform Capture Rate
  • I2C, SPI, RS-232/422/485/UART, CAN and LIN serial triggering and analysis options
  • Wave Inspector® controls allow you to easily search and navigate through long memory
  • Large 9 inch WVGA widescreen display lets you see more horizontal on-screen data
  • PC connectivity and USB mass storage for easy transfer and documentation of information
  • USB 2.0 on Front Panel for Quick and Easy Data Storage
  • USB 2.0 Device Port for Direct PC Control of Oscilloscope Using USBTMC
  • Built-in Ethernet Port
  • Suite of Advanced Triggers
  • Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis
  • Plug ‘n’ Play Connectivity and Analysis Software Solutions
  • e*Scope Remote Viewing and Control
  • TekVPI® Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units
  • Small Footprint and Lightweight – Only 5.4 inches (137mm) deep and 9 lbs (4 kg)
