Showing Results for Keysight Technologies (Agilent HP) DSOS104A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) DSOS104A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

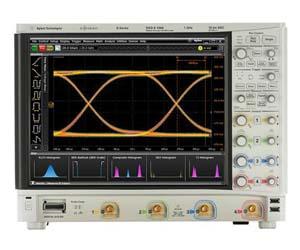

Keysight Technologies (Agilent HP) DSOS104A (Infiniium S-Series) Main Features and Specifications

Product Specs

  • Bandwidth 1 GHz
  • Channels 4
  • Sample Rate 20 GSa/sec
  • Memory Depth 50 Mpts. on 4 channels, 100 Mpts. on 2 channels
  • Status -
  • Launch Date Apr-2014

See also

Infiniium S-Series high-definition oscilloscopes incorporate new technology to deliver superior measurements. A 10-bit ADC, low-noise front end, correction filters, vertical scaling support down to 2 mV/division, and a precise time base produce high-fidelity measurements. In addition, its advanced frame and broad range of capability enable the S-Series oscilloscopes to tackle a wide range of test needs.

  • 1 GHz bandwidths with flat frequency response for high signal fidelity
  • 20 GSa/s maximum sample rate on 2 channels, 10 GSa/s on 4 channels
  • 10-bit analog-to-digital converter (ADC) for high vertical resolution
  • 430 ps typical rise/fall time (10 to 90%)
  • Low-noise front end with system ENOB > 8
  • 15” capacitive touch screen with multi-touch support
  • Intel i5 motherboard with 8G RAM for fast processing
  • Standard solid state drive for fast boot and high reliability
  • USB 3.0 and Ethernet with offload speeds up to 200 MB/s
  • Upgrade to a higher bandwidth
  • Capture long records with 50 Mpts/channel standard memory depth - upgrade options available
  • Choose from a wide range of protocol, compliance, and analysis options
  • Supports a wide variety of voltage, current, differential, single-ended, active, and passive probes
