Showing Results for Keysight Technologies (Agilent HP) DSO5054A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) DSO5054A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3670 to $2760 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

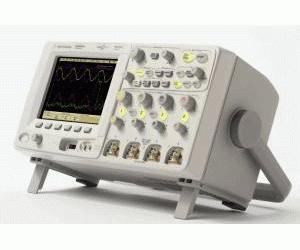

Keysight Technologies (Agilent HP) DSO5054A (5000 Series) Main Features and Specifications

Product Specs

  • Bandwidth 500 MHz
  • Channels 4
  • Sample Rate 4 GSa/sec
  • Memory Depth 1 Mpts
  • Status -
  • Launch Date Apr-2007

See also

The Agilent 5000 series delivers our proprietary MegaZoom III technology in a small benchtop package. By combining fast sample rates with deep memory and impressive update rates, these scopes help you avoid the trade-offs associated with typical bench scopes.

The 5000 Series oscilloscopes leverage the same third generation
MegaZoom III technology blocks used in our higher performance bench and lab oscilloscopes – responsive deep memory, fast update rates with minimal “dead time”, and analog-like display systems – and deliver them in a compact package, at a price similar to oscilloscopes with older technology blocks.

  • Big scope performance in a small package
    • 500 MHz
    • 4 channels
    • 4 GSa/s sample rate
  • MegaZoom III memory and display technology
    • 1 Mpts acquisition memory
    • Up to 100,000 waveform per second real-time update rate
    • High-definition XGA (1024 x 768) display with 256 levels of intensity grading
  • Complete connectivity – standard
    • USB (2 host ports, 1 device port), LAN, GPIB, 100 MBit LAN
    • XGA display out
    • Full remote control, including web browser interface
    • LXI-C compliant
