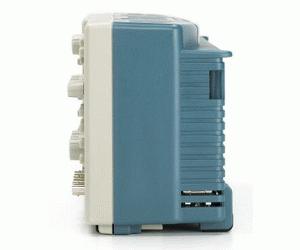

Tektronix TDS2001C (TDS2000C Oscilloscope Series) Main Features and Specifications

Product Specs

  • Bandwidth 50 MHz
  • Channels 2
  • Sample Rate 500 MSa/sec
  • Memory Depth 2.5 k points record length at all time bases.
  • Status -
  • Launch Date Oct-2010

The TDS2000C Oscilloscope Series provides you with affordable performance in a compact design. Featuring Tektronix proprietary technology, the digital real-time sampling architecture means you can accurately see small signal details. With models ranging from 50 MHz to 200 MHz bandwidth, and with two or four channels, the Tektronix TDS2000C Series gives engineers the performance they need at an affordable price. Every model is packed with standard features, including USB connectivity, 16 automated measurements, limit testing, built-in help menu and a Lifetime Warranty. Get more done in less time with the TDS2000C Oscilloscope Series.

  • 200 MHz, 100 MHz, 70 MHz, 50 MHz Bandwidth Models
  • 2- and 4-channel Models
  • Up to 2 GS/s Sample Rate on All Channels
  • 2.5k point Record Length on All Channels
  • Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger
  • 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • Built-in Waveform Limit Testing
  • Automated, Extended Data Logging Feature
  • Autoset and Signal Auto-ranging
  • Built-in Context-sensitive Help
  • Probe Check Wizard
  • Multiple-language User Interface
  • 5.7 inches (144 mm) Active TFT Color Display
  • Small Footprint and Lightweight – Only 4.9 inches (124 mm) Deep and 4.4 pounds (2 kg)
  • USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Includes National Instruments LabVIEW SignalExpress™ TE Limited Edition and Tektronix OpenChoice® Software for Connecting Your Bench

TDS2001C characteristics:

  • Bandwidth: 50 MHz
  • Number of channels: 2
  • Sample rate on each channel: 500 MS/s
  • Record length: 2.5 k points at all time bases
  • Vertical resolution: 8 bits
  • Vertical sensitivity: 2 mV to 5 V/div with calibrated fine adjustment
  • Maximum input voltage: 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz
  • Bandwidth limit: 20 MHz
  • Time base range: 5 ns to 50 s/div
