Showing Results for Rohde & Schwarz SMY02

9 results found for Rohde and schwarz smy02
Similar models:  Rohde & Schwarz SMY01
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Rohde & Schwarz SMY02 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $4680 to $1885 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

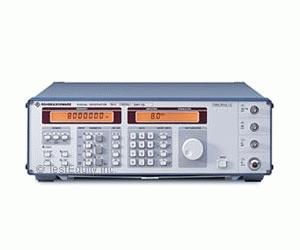

Rohde & Schwarz SMY02 (SMY Family) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 2.1 GHz
  • Freq. Resolution 1Hz
  • Output Power -140 dBm up to 19 dBm; With option SMY-B40 -134 dBm to +19 dBm (25 dBm overrange)
  • Modulation AM,FM,Pulse,Phase
  • Status Discontinued

See also

Signal generators of the Rohde & Schwarz  SMY family from Rohde&Schwarz are cost-effective instruments for testing AM, FM and jM receivers as well as for component measurements.

Two models are available:

  • R&S SMY01 with a frequency range from 9 kHz to 1040 MHz
  • R&S SMY02 from 9 kHz to 2080 MHz

Designed exclusively for the main applications of signal generators by cutting out the unnecessaries, R&S SMY features an outstanding price/performance ratio. Thanks to its comprehensive basic features and excellent signal characteristics, it is an economical solution for universal use in lab, production and servicing environments.

  • Level range -140 dBm to +13 dBm (19 dBm overrange) , sufficient even for receivers of highest sensitivity
  • High level accuracy and low RF leakage allowing accurate and undegraded sensitivity measurements
  • FM-DC with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches
  • Low SSB phase noise( -114 dBc/Hz) and high spurious rejection for all in-channel and blocking measurements
  • Low residual FM affording ample of margin for S/N measurements
  • Modulation generator 1 Hz to 500 kHz for modulation frequency response measurements
  • Stereo channel separation of 50 dB and low harmonic distortion for testing FM stereo receivers
  • Non-interrupting level setting over a range of 20 dB for reproducible measurement of squelch hysteresis
  • Frequency resolution 1 Hz, suitable also for narrowband test items
  • FM-DC, deviation up to 20 MHz for VCO simulation
  • FM bandwidth 2 MHz for fast FSK and telemetry applications
  • High output level up to 19 dBm (25 dBm with option R&S SMY-B40) for component and overdrive testing
  • AF synthesizer 1 Hz to 500 kHz, separate use as AF signal source for external applications possible, eg recording of AF frequency response
  • Remote-control interface IEC625/IEEE488 for use in automatic test systems
  • RF sweep
  • Sequence function and SEQ input for semi-automatic use
