Rohde & Schwarz SMV03 (Vector Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 3.3 GHz
  • Freq. Resolution 100 mHz
  • Output Power -140 dBm to +13 dBm
  • Modulation AM,FM,Pulse,Phase
  • Status Discontinued

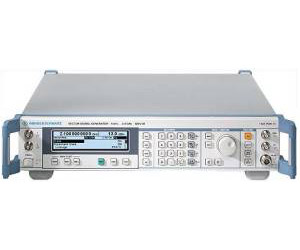

The Vector Signal Generator R&S SMV03 is based on the successful analog Signal Generator R&S SML03 and so features the same excellent technical characteristics. It comprises an additional broadband I/Q modulator which is able to generate any digital signal in conjunction with an external I/Q source. The R&S SMV03 is, therefore, a way of entering the wide field of automatic test systems as well as gaining access to applications like R&D and service. When used together with the I/Q Modulation Generator R&S AMIQ and the software R&S WinIQSIM™, the R&S SMV03 can generate digital signals that meet any requirement. Features: Broadband I/Q modulator Wide output frequency range from 9 kHz to 3.3 GHz with 0.1 Hz resolution High (+13 dBm) and precise output level (<0.5 dB) Interruption-free level setting by electronic attenuator High spectral purity (<–122 dBc (1 Hz) at f = 1 GHz and 20 kHz carrier offset) Fast setting time for frequency and level Low cost of ownership with a 3-year calibration cycle Compact size (only 2 HU) AM/FM/fM and optional Pulse modulation
