Showing Results for Rohde & Schwarz SMIQ03

14 results found for Rohde and schwarz smiq03
Similar models:  Rohde & Schwarz SMIQ02
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Rohde & Schwarz SMIQ03 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1748 to $1470 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

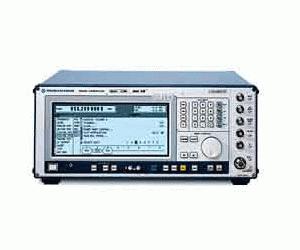

Rohde & Schwarz SMIQ03 (SMIQ Family) Main Features and Specifications

Product Specs

  • Frequency Range Min. 300 kHz
  • Frequency Range Max. 3.3 GHz
  • Freq. Resolution 100 mHz
  • Output Power +13 dBm to -140 dBm
  • Modulation AM,FM,Pulse
  • Status Discontinued

See also

  • Minimum Frequency 300 kHz
  • Maximum Frequency 3.3 GHz
  • Frequency Resolution 0.1 Hz
  • Frequency Switching Time 15 ms
  • Time base stability 0.000001 /yr
  • External Frequency Reference 16 MHz
  • Minimum Output Power -140 dBm
  • Maximum Output Power 13 dBm
  • Power Resolution 0.1 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -135 dBc/Hz
  • Maximum Single-Side-Band Noise -130 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Non-harmonics (noise) -60 dBc
  • Modulation AM,FM,Pulse
  • External Modulation Inputs(Types) Yes
  • Sweep Modes Linear,Log,List
  • Test Pattern Storage 50 Patterns
  • Mobile Phone Design and Test
  • Base Station Design & Test
  • Dig Video Comp & System Design
  • Wideband CDMA Development
  • Univesal modulation coder
  • Fading simulator
