Here you will find a large selection of new and used Rohde & Schwarz SMB-B101 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

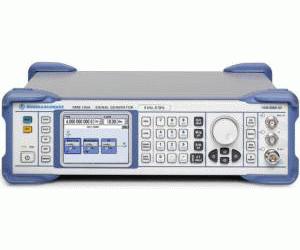

Rohde & Schwarz SMB-B101 (SMB100A) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 1.1 GHz
  • Freq. Resolution 1 mHz
  • Output Power >+18 dBm
  • Modulation AM,FM,Pulse,Phase
  • Status -
  • Launch Date Jul-2007

See also

  • Best signal quality in its class
    • Low SSB phase noise of typ. –128 dBc (20 kHz carrier offset, 1 GHz carrier frequency, 1 Hz measurement bandwidth)
    • Very low SSB phase noise even at low output frequencies (because a new DDS synthesizer is used from 9 kHz to 23.4375 MHz instead of a downconverter)
    • Nonharmonics suppression of typ. –85 dBc (>10 kHz carrier offset, carrier frequency <1.5 GHz)
    • Low wideband noise of typ. –152 dBc (>10 MHz carrier offset, 1 GHz carrier frequency, 1 Hz measurement bandwidth)
    • Harmonics of typ. –30 dBc at the maximum specified output power of +18 dBm for high measurement accuracy in a wide variety of applications
  • Highest output power in its class
    • Specified output power of +18 dBm over the wide frequency range of 1 MHz to 6 GHz
    • Typical maximum level of +25 dBm (in overrange) over the entire frequency range up to 6 GHz provides power reserve to replace external amplifiers
  • On-site servicing as convenient alternative
    • Flexible concept allows servicing to be done on site or by a Rohde & Schwarz service center
    • Straightforward modular instrument design with only four exchangeable modules ensures short repair times
    • Calibrated replacement modules make extensive calibration and adjustment tasks unnecessary
    • Built-in selftest of modules supports troubleshooting
    • Verification of level accuracy and automatic level correction with a connected power sensor of the R&S NRP family ensures low cost of ownership and maximum instrument availability
  • All-purpose RF source
    • Wide frequency range from 9 kHz to 6 GHz covers the main frequency bands for RF applications
    • Integrated frequency, level, and LF sweeps
    • All important analog modulations with AM, FM/fM, and pulse modulation supported
    • Internal LF generator provides sinewave signals up to 1 MHz as well as squarewave signals up to 20 kHz
    • Intuitive user interface with graphical display of the signal flow facilitates operation
    • Context-sensitive online help ensures efficient utilization of the instrument makes the R&S SMB100A the ideal signal source for a wide variety of applications
  • Ideal for production
    • Short switchover times for frequency of typ. 1.6 ms and level of typ. 1.2 ms via remote control and <1 ms in the List mode allow high throughput
    • High level accuracy and repeatability are the basis of high production yield
    • High output power of up to +25 dBm compensates level loss on the way to the DUT
    • Wearfree electronic attenuator with overvoltage protection up to 6 GHz as standard ensures long service life even in the case of
      heavy use in production
    • Compact design with only two height units saves rack space
    • Remote control via LAN, USB, and GPIB allows easy integration into the test system reduces production costs
  • Ready for aerospace and defense applications
    • Optional pulse modulator offers excellent performance with typ. 90 dB on/off ratio and a rise/fall time of typ. 10 ns
    • Flexible pulse generator with minimum pulse width of 20 ns allows the generation of various pulse signals
    • Wide temperature range of 0 °C to +55 °C and maximum permissible operating altitude of 4600 m above sea level allow the instrument to be used even under extreme conditions
    • Low weight of only 5.3 kg for mobile applications expands the range of locations and applications for which the R&S SMB100A can be used
