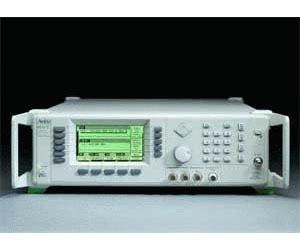

Anritsu 69367B (69B Family High Performance Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 10 MHz
  • Frequency Range Max. 40 GHz
  • Freq. Resolution 100 mHz
  • Output Power +13 dBm to -15 dBm (-20 dBm typical) ;with an attenuator -120 dBm
  • Modulation AM,FM,Pulse,Scan,Phase
  • Status Discontinued
  • Alternative MG3690B Series

See also

The Anritsu 68C/69B series are your best choice for A.T.E. applications. They pack the highest performance available in a single 13.3 cm package to minimize rack space. High output power assures adequate signal strength to the device under test even after A.T.E. switching and cabling losses.

Accurately leveled output power to –120 dBm in 0.01 dB steps facilitates receiver sensitivity measurements. Fast 5 ms switching time maximizes system throughput. Internal list mode frees the A.T.E. controller to perform measurement analysis tasks. Optional SCPI programmability and free application drivers, including the IVICOM driver and National Instruments LabView® drivers, save you time and money in code generation and maintenance.

AM, FM, phase modulation, pulse modulation, scan modulation and user-defined modulation make the Anritsu 69300B series perfect for signal simulation. Internal modulation generators offer 7 modulating waveforms plus optional user-defined modulation waveforms. Internal Gaussian and uniform noise capabilities provide controlled clock jitter for digital receiver testing. Advanced internal pulse modulation generates single and multiple pulses, for the ultimate in radar blind spot and recovery time testing. In addition, Anritsu’s unique pulse generator provides moving target simulation, radar and fading simulation.

The 68C family offers excellent phase noise performance at a moderate cost, while the 69B family offers the ultimate in phase noise performance.

  • Broad frequency coverage including 0.1 Hz to 65 GHz in a single coax output
  • Ultra-low SSB phase noise and spurious
  • +17 dBm guaranteed leveled power to 20 GHz
  • 0.1 Hz optional frequency resolution
  • <5 ms switching time for
  • <100 MHz sweep steps
  • Digital frequency sweep and digital power sweep
  • Wide dynamic range with accurate output levels
  • Intuitive, menu-driven front panel
