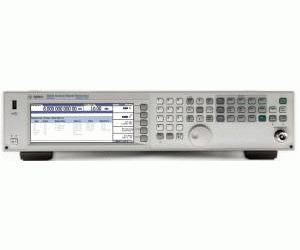

Keysight Technologies (Agilent HP) N5181A-501 (MXG Series) Main Features and Specifications

Product Specs

  • Frequency Range Min. 250 kHz
  • Frequency Range Max. 1 GHz
  • Freq. Resolution 10 mHz
  • Output Power to +16 dBm
  • Modulation AM,FM,Pulse,Phase,Analog
  • Status -
  • Launch Date Sep-2006

See also

Agilent MXG analog has three frequency range options to choose from to meet your specific RF test and budget requirements.

Selecting Option 501 equips the Agilent MXG analog to generate signals in a 250 kHz to 1 GHz frequency range.

Option 501 is recommended for test cases that require CW and analog modulated RF test signals at or below 1 GHz carrier frequencies. Common signal generation uses include LO and clock substitution, interference generation, and reference signal generation for analog components and receivers.

  • Covers the lower cellular frequency bands
  • Frequency resolution: 0.01 Hz
  • Phase noise performance: -116 dBc/Hz at 1 GHz carrier, 20 kHz offset
  • Output power: +16 dBm (measured) at 1 GHz with electronic attenuator
  • Frequency switching speed: 5 ms standard (SCPI mode & list mode) or 1.05 ms (SCPI) and 800 us (list) with Option UNZ
  • TCXO time base reference provides excellent frequency accuracy and drift characteristics
