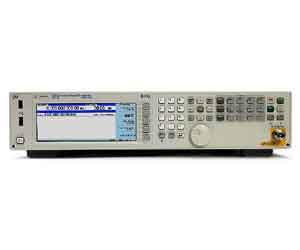

Showing Results for Keysight Technologies (Agilent HP) N5171B

To help you achieve faster throughput and greater uptime, the EXG is optimized for manufacturing test with the signals you will need for basic parametric testing of components and calibration of receivers. Get “just enough” test at the right price with the EXG.

• 9 kHz to 1, 3 or 6 GHz
• +21 dBm specified power to 3 GHz with electronic attenuator
• <900-µs simultaneous switching of frequency and power
• <0.1 dB level repeatability
• AM, FM, ØM, and narrow pulse
• Pulse train generator
• 10 MHz multifunction generator and LF out
• Digital step and list sweep modes
• 1000BaseT LAN, LXI, USB 2.0, and GPIB
• SCPI, IVI-COM, MATLAB drivers
• Backward compatible with all ESG, MXG, PSG, and 8648x signal generators
• Agilent USB power sensor compatible with embedded display and SCPI control
• Maximize yield with outstanding hardware performance
  • Confidently test components with excellent level accuracy and repeatability
  • Compensate for test system losses with industry-leading output power
  • Maximize throughput with fast switching speed
  • Shrink your test stand with two rack-unit height
  • Get the performance and capabilities you need today and easily upgrade later
• Maximize resources with low cost of ownership
  • Increase uptime with high mean time between failures (MTBF)
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

N5171B EXG RF analog signal generator specifications:

• Frequency range: 9 kHz to 6 GHz
• Frequency switching (list mode): 800 µs
• Sweep mode: List, step
• Output power (minimum): ‑144 dBm
• Output power (at 1 GHz): +21 dBm
• Harmonics (at 1 GHz): ‑35 dBc
• Non-harmonics (at 1 GHz): ‑72 dBc
• SSB phase noise (1 GHz, 20 kHz offset): ‑122 dBc/Hz
• AM rate: DC to 50 kHz
• FM deviation (maximum at 1 GHz): 10 MHz
• PM phase deviation (maximum at 1 GHz): 5 rads
• Narrow pulse width: 20 ns
