Here you will find a large selection of new and used Keysight Technologies (Agilent HP) E4428C-506 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

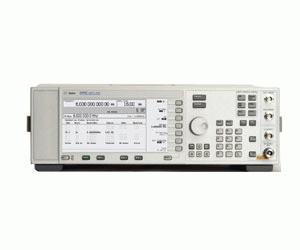

Keysight Technologies (Agilent HP) E4428C-506 (ESG Series) Main Features and Specifications

Product Specs

  • Frequency Range Min. 250 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power +14 to -136 dBm
  • Modulation AM,FM,Pulse,Phase,Wideband AM,Analog,Wideband FM
  • Status -
  • Launch Date Feb-2005

See also

Selecting Option 506 for the E4428C ESG analog signal generator provides a 250 kHz to 6 GHz frequency range coverage. Two frequency range options are available to choose from for the E4428C ESG: Option 503 or Option 506 (250 kHz to 6 GHz). These choices provide ample resolution to configure the E4428C ESG to meet your specific RF test requirements.

Option 506 is recommended for test cases that require CW and analog modulation baseband or RF test signals at or below 6 GHz carrier frequencies. Common uses include the generation of CW and analog receiver test signals in the cellular, ISM (2.4 & 5.8 GHz), and UNII frequency bands.

  • Covers the entire cellular, ISM (2.4 & 5.8 GHz), and UNII  frequency bands
  • Stand high stability OCXO time base reference reduces frequency drift resulting in improved frequency accuracy
  • Excellent standard phase noise performance of -134 dBc/Hz (1 GHz carrier, 20 KHz offset)
  • Optional higher output power with mechanical attenuator
